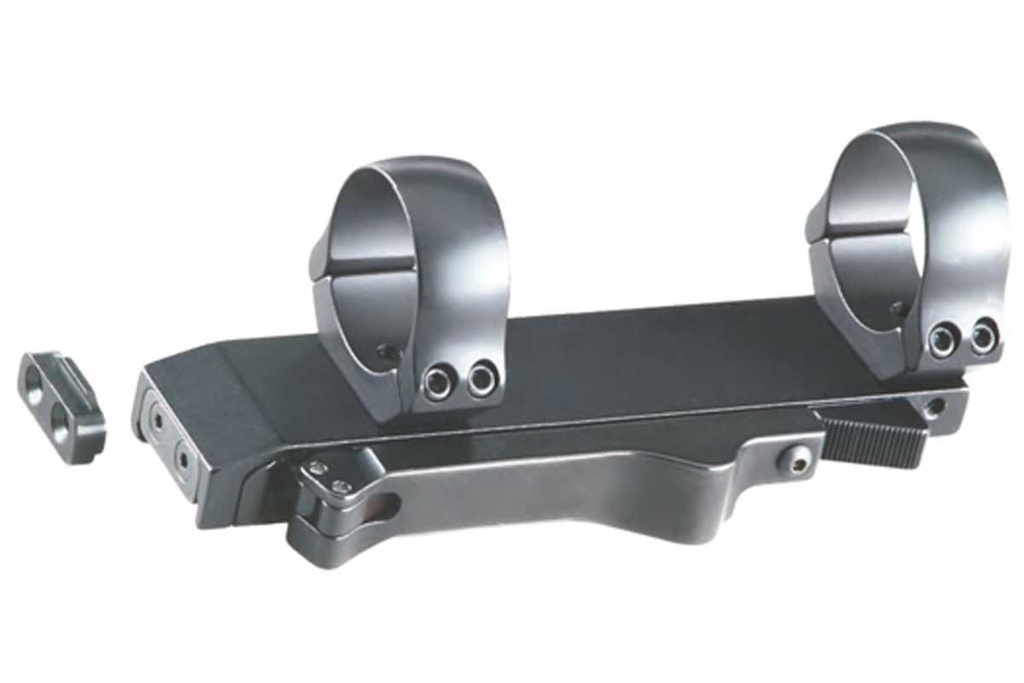

RECKNAGEL MOUNT 57145-0300 SSK-II D30 PA WEAVER OR PICATINNY RAIL

The Recknagel monoblock mount (Reference: 57145-0300) is a high-precision tactical mounting system designed under the renowned ERA-TAC line from the German company Recknagel. This specific model is configured for scopes with a 30mm diameter tube and is fully compatible with Weaver or Picatinny rails (MIL-STD-1913).

The following details its technical specifications and key features:

Technical Specifications

• Ring diameter: 30 mm (D30).
• Construction Height (BH): 15.0 mm (Measured from the top of the rail to the bottom of the viewfinder tube).
• Fixed tilt: No tilt available / 0 MOA (Straight alignment, ideal for standard distances).
• Ring width: 20 mm (Ensures an exceptionally wide contact surface to prevent the scope from moving under strong recoil).
• Rail compatibility: Standard Picatinny and Weaver profiles.

Featured Features

• Machined Monoblock Construction: Manufactured from a single solid block of high-strength aircraft-grade aluminum (Ergal) using advanced CNC processes. This eliminates potential flex points and ensures perfect ring alignment.
• SSK-II Tactical System / Safety Lock: Incorporates low-profile triangular nuts (special wrench included) or adjustable levers depending on the specific model. The design ensures uniform and constant clamping pressure, maintaining the impact point unchanged after assembly and disassembly.
• Interchangeable Stop Plates: Includes specific recoil pins (rail stops) to adjust the optimal fit depending on whether it is mounted in Weaver slots or wider Picatinny-type slots, preventing any longitudinal play.
• Military Anodizing: Hard black anodized surface treatment that provides maximum resistance to scratches, corrosion and glare in demanding weather conditions.
